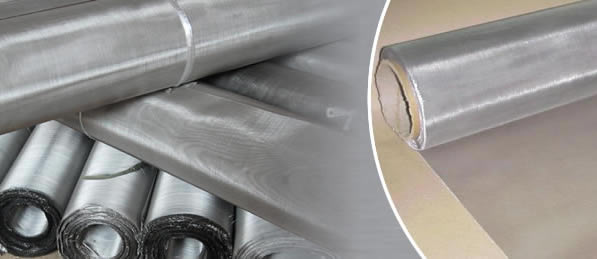

Stainless Steel Wire Mesh
Woven wire mesh and wire cloth in stainless steel or other metals are mainly used as filter wire mesh, filter wire cloth or wire mesh screen. Stainless steel wire mesh is also written as stainless steel mesh, stainless wire mesh, stainless steel wire mesh cloth, stainless steel mesh screen, stainless steel wire netting mesh or stainless steel woven mesh. We introduce stainless steel wire mesh manufacturers and related information on stainless steel woven wire mesh and materials here.
Variety According to Processing Difference:
1, Woven Stainless Steel Mesh:
Stainless Steel Square Opening Wire Mesh ( Plain Woven & Twilled Woven)
Fine Filtration Wire Mesh Filter Cloth (Dutch Plain Woven, Dutch Twilled Woven, Five-Heddle Woven & Dutch Reverse Woven)
2, Welded Stainless Steel Wire Mesh
3, Twisted Hexagonal Wire Netting in Stainless Steel
4. Crimped Stainless Steel Wire Mesh Screening
5. Perforated Metal Sheet in Stainless Steel
6. Expanded Metals in Stainless Steel
Stainless steel wire mesh can be divided into stainless steel insect screening, stainless steel wire mesh filters, stainless steel woven fencings, etc.
Stainless Steel Wire Materials for Stainless Steel Woven Wire Mesh & Wire Cloth:
Stainless Steel Wire Type 304
Often referred to as "18-8" (18% chromium, 8% nickel) T-304 is the basic stainless alloy most commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit.
Type 304 L
Stainless Steel Wire Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.
Type 316
Stainless Steel Wire Type 316 is stabilized by the addition of 2% molydbenum, T-316 is an "18-8" alloy.
Type 316 has better resistance to pitting corrosion than the other chromium-nickel stainless steels where brines, sulphur-bearing water or halogen salts, such as chlorides are present. A valuable property of T-316 is high creep strength at elevated temperatures. Other mechanical properties and fabricating characteristics are similar to T-304.
Wire cloth woven of stainless steel wire T-316 has extensive use in chemical processing when better corrosion resistance is required than the regular chromium-nickel types.
Type 316 L
Type 316 L Stainless Steel Wire is very similar to T-316, the difference being the reduced carbon content for better wire cloth weaving and secondary welding characteristics.
Applications of Stainless Steel Woven Wire Mesh and Wire Cloth: Sifting and filtering in acid and alkali conditions. Slurry net in petroleum, sifting and screening mesh in chemical and chemical fiber industry, acid washing mesh in electric plating industry.
·
Meet Related Manufacturers:
• Tejido Stainless Steel Wire Mesh Co.,Ltd.
URL: http://www.stainlesssteelwiremesh.org
Tejido stainless steel wire mesh co.,ltd. offer sus304 and 316 stainless steel wire, stainless steel woven wire mesh, square hole aperture wire mesh, welded stainless wire mesh, pre-crimped wire mesh screen, expanded metal stainless steel, perforated metal stainless steel, stainless steel sintered mesh, decorative wire mesh curtains and cladding, ss wedge wire screen and elements, extruder screen for plastic and rubber, stainless steel filter elements and cartridges, filter discs and pack screen, stainless steel wire mesh ,cloth test sieves, stainless steel window screen, stainless steel mesh printing screen.
Our stainless steel wire mesh and other metal wire mesh products have been exported to Europe, the U.S.A., the Middle East, Southeast Asia, Africa and some other parts in the world.
Add: No. 156 Industrial Park, Dezhou, Shandong, China
• Anping Yusheng Wire Mesh Co.
URL: http://www.yusheng-wiremesh.com
Major Products: Stainless Steel Wire Mesh, Wire Cloth, Chain Link Fence, Galvanized Wire and More.
Contact Info: Add: No.12 No.3 Building, F District, Grand Wire Mesh World, Anping, Hengshui, Hebei, China 053600 Tel: 0086 318 7531788 Fax: 0086 318 7531739 E-mail: sales@yusheng-wiremesh.com
• AAA Stainless Steel Wire Mesh Factory
URL: http://www.stainlesssteelwiremesh.com
Major Products: Stainless Steel Wire Mesh, Micron Wire Cloth, Wire Mesh Pieces and Discs, Filter Elements, etc.
Contact Info:
Add: No.68 Lingyuan East Street of Anping County, Hebei, China 053600
Tel: 0086-0318-7526482 7532990 7532293
Fax: 0086-318-7521692
E-mail: sales@stainlesssteelwiremesh.com
• Hehua Stainless Steel Wire Mesh Factory
URL: http://www.stainlesssteel-wiremesh.com
Major Products: Stainless Steel Woven Wire Mesh Square Opening, Stainless Steel Dutch Woven Wire Cloth, Stainless Steel Wire, Stainless Steel Crimped Wire Mesh, Stainless Steel Welded Mesh and wire conveyor belt.
Stainless steel dutch wire mesh is made of high quality stainless steel wire. The performance tested of Stainless steel is wear-resisting , heat-resisting , acid - resisting and corrosion resisting. Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.
Plain dutch weave: Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker and arranged wider apart.
Twill dutch weave: "Twill" indicates the warp and weft wires pass alternately above two and below two wires. "Dutch" refers to the use of a heavier warp wire diameter in conjunction with a lighter weft wire diameter. This weave shows a combination of twill and dutch weave.
Anping HuaCheng Wire-Drawing and Mesh-Weaving Factory
URL: http://www.stainless-steel-wire-mesh.com
Major Products: Stainless Steel Wire Mesh, Iron Wire Mesh and Others.
Contact Info: Add: Development Zone of Nan Hu Lin,Anping County, Hebei Province, P. R. China 053600
Tel: 0086-318-7021619/0086-318-7023669 Fax: 0086-318-7518998
Mobile:013903187681
Manager: Mr.Wangenze
Email: info@stainless-steel-wire-mesh.com
Hebei Hengmao Filter Elements Co., Ltd.
URL:

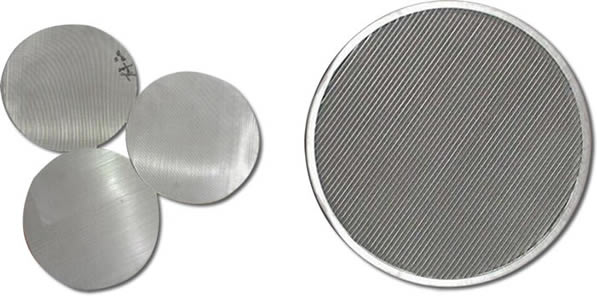

Stainless Steel Rimmed Mesh Disc
SUS304 Stainless Steel Mesh Discs with rims are popularly used as refining screen in petroleum industry.
Refining Screen Grade Stainless Steel Rimmed Mesh Discs are flat packs processed from 304, 304L or 316 ss mesh cloth with excellent anti-acid and anti-corrosion property.
Following standard sizes for European Market:
62mm Outer Diameter Maximum;
54mm Inner Diameter/ Aperture Minimum;
Mesh Count: 20 per inch;
Wire Size: 28gauge;
The stainless steel mesh are cut flat sheet.
Options:
Disk layers Options: Single-layer and multi-layer; edge rimmed steel mesh multi-layer welded discs, sintered mesh disc, etc.
Mesh ranges from 20 mesh to 500 mesh to 2 micron.
Woven Wire Mesh in materials of non ferrous metals such as copper can be supplied.
Applications: SS mesh filter discs are mainly used for petroleum, oil refining, chemical industry.
Features:
•Anti-acid and alkali;
•Direct filtration, simple process;
•Good permeability;
•Good holding capacity and definable pressure drop;
•Easy to install;
•Durable;
•High efficiency;
•Easily cleanable with excellent durability. Superior mechanical strength for problem free processing.
•Higher physical & chemical resistance.
Stainless Steel Wire Mesh Belt Filter Screen
Hengmao offers belt or ribbon type stainless steel wire mesh filter screen for plastic extrusion in replacement of conventional extruder screen packs. The woven mesh screen is Reverse Dutch Twill Weave Wire Mesh supplied in belt or ribbon type or band. Woven from quality SUS304 or 316 grade stainless steel fine wire. Designed to work with automatic contionuous screen changers used on plastic extruder.
Wire Mesh Filter Screen in Ribbon TypeStainless Steel Wire Mesh Belt for Plastic Extruder Screen Changers
Three Reasons Making Reverse Dutch Twill Weave Mesh Belt Suitable For The Screen Changers:
First, Stainless Steel Materials:
The mesh belt or ribbon is made of quality stainless steel wire materials, offering the following features:
Anti-corrosive, anti-abrasive;
Presition mesh opening;
Smooth surface;
High hardness;
No deformation;
High temperature resistent.
Second, Weaving Style Ensures High Tensile Strength and Precision Filtration:
Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. High Tensile Warp wire ensures high tensile mesh strength suitable for Auto-Screen changers used in the Plastic Extrusion Industry.
Filter ribbons are supplied in rolls with custom or standard length for various screen changers. The wire mesh filter belt is equivalent to several hundred screen packs in a conventional screen changer in plastic processing.
